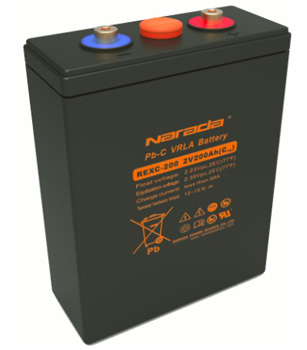

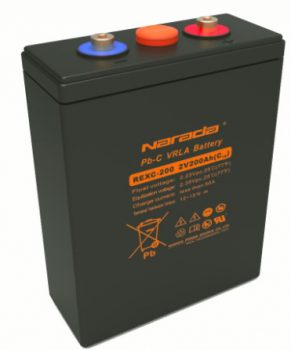

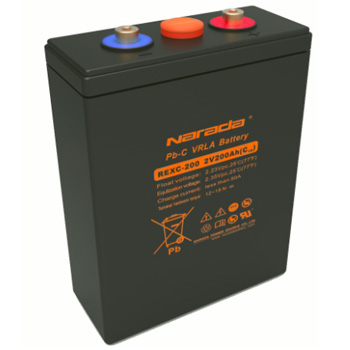

12REXC-200 BATTERY
This battery is in stock.
REX-C(12V&2V) Series cyclic performance
| Nominal | Voltage 2V |
| Capacity | 200Ah (10hr to 1.80V/cell @25℃) |
| 240Ah (120hr to 1.85V/cell @25℃) | |
| Typical Weight | 17kg |
| Internal Resistance | Approx 0.55mΩ |
| Short-Circuit Current | 3700A |
| Self Discharge | The residual capacity is above 90% after 90 days storage (25℃) |
| Temperature Ranges | Operation (recommended):15℃~25℃ |
| Operation(maximum):-40℃~50℃ | |
| Max. charging current | 60A |
| Max. constant charging current | 40A |
| Charge Voltage | Floating:2.25V (25℃) |
| Equalizing/Cycle:2.30V(25℃) | |
| Terminal | M8 embedded copper |
| Terminal Hardware Torque | >10N·m |
Enquiry about 12REXC-200 BATTERY
Features
- Design life 20 years
- Combine the advantage of lead acid battery and supercapacitor
- Ideal for PSOC cycle application
- High power, repid charge/discharge
- Reduce sulfation of negative plate, excellent recharge acceptance performance
- Waterproof, anti-salt treatment, shockproof module installation design
- Comply with IEC60896, IEC61427 etc. standard
Application
- Renewable energy storage
- Smart power grids and microgrids system
- Distributed energy storage system
- Hybrid energy storage system such as solar and wind
- Home energy storage system
- Solar power generation grid/off-grid energy storage system
- Emergency lighting system
- Generator and battery hybrid energy system
- Other standby, cycling system
