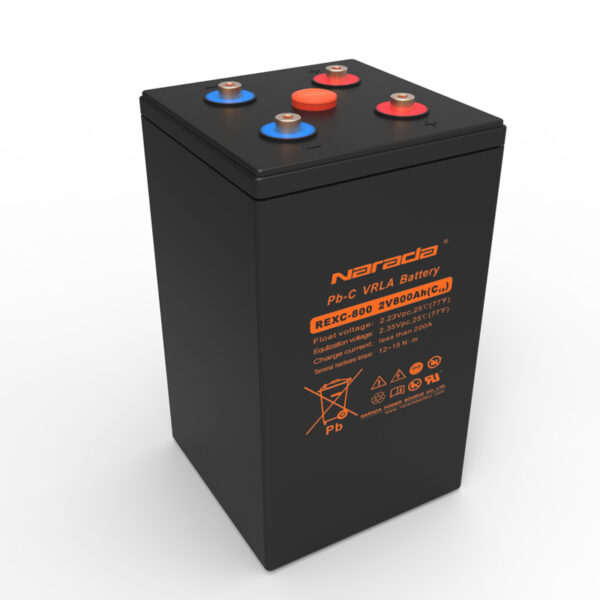

REXC800 2V Series Lead Carbon Battery

Lead Carbon battery add carbon material with high capacitance or highly conductive into the negative electrode, combine the advantages of lead acid battery and super capacitors, Lead carbon battery provide not only high energy density, but also high power, rapid charge and discharge, longer cycle life.

Features & Benefits

  • Combine the advantage of lead acid battery and supercapacitor
  • Extra long cycle life
  • Special construction and formulation design
  • Excellent recharge acceptance performance, super fast charge/large discharge performance
  • Ideal for PSOC cycle application
  • Lead Carbon technogy
  • Module cabinet design, easy enlarge capacity
  • Comply with IEC61427, IEC60896 etc. standard

Technical specifications


  • Home energy storage system
  • Hybrid energy system such as solar and wind energy
  • Generator and battery hybrid energy system
  • Emergency lighting system
  • Other standby, cyclic system

Battery Parameter

  • Nominal Voltage 12V or 6V
  • Charge Voltage Float use: 2.27Vpc (25℃ ) – Equalization and cycle use: 2.35Vpc (25℃ )
  • Terminal M6 or M8 copper insert
  • Container ABS
  • Plate Lead carbon(negative plate)
  • Operation Temp. Optimum temperature : 15℃ to 25℃ – Max. temperature: -20℃ to +50℃

Important Information

Product Guide: REXC Series Lead Carbon Battery
