Enerdrive Folding Solar Panels

Enerdrive offers a great outdoor solution to keep your battery and 12 volt equipment going and going all year round in the sun. The Enerdrive Portable Power Anywhere Solar kits feature all the goods you require for portable solar power around your caravan, camp site, mooring or any outdoor activity. Available in 100W, 120W and 160W.

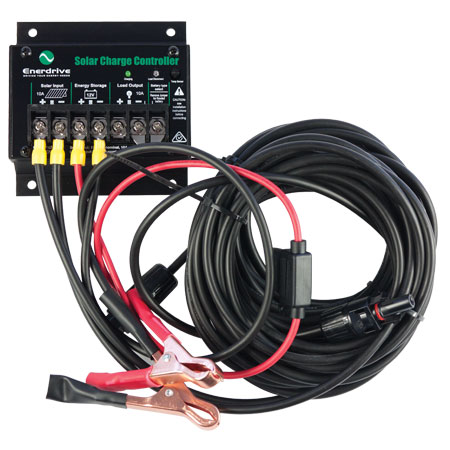

Included in the kit is a 10amp Enerdrive Solar controller (20amp for the 160W solar panel), which is completely waterproof for your peace of mind if you do happen to leave the kit outside.

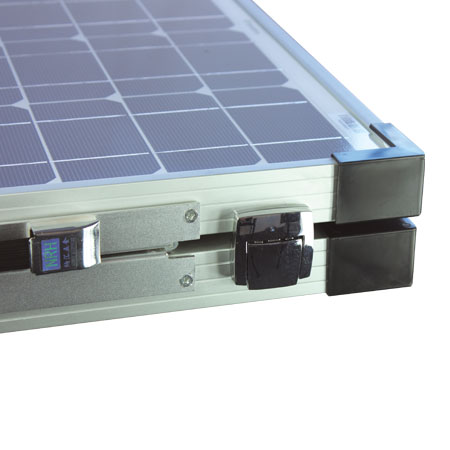

  • Quality Mono-Crystalline solar panels with solid 35mm double channel aluminium frames
  • Sturdy legs to provide you with the best angle for the panels to the sun
  • 5 meters of easy plug and play battery leads
  • A quality 10amp solar regulator with adjustable flooded or sealed type battery switch modes

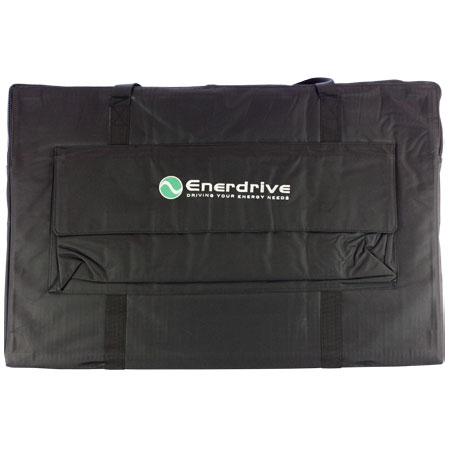

  • A strong, durable canvas bag with carry pouch for all accessories
  • Locally supported 2 year product warranty with spare parts on demand
SKU: SPF-EN120W or SPF-EN160W Categories: ,
Enerdrive Folding Solar Panel Kits
Enerdrive Part NumberSPF-EN120WSPF-EN160W
Note: Specifications subject to change without notice.
Max Power Pm(W)120160
Power Tolerance %± 3%-1% ~ +3%
Max Power Voltage Vm(V)1817.99
Max Power Current Im(A)6.678.9
Open Circuit Voltage Voc(V)2222.19
Short Circuit Current Isc(A)6.889.36
Max System Voltage (VDC)10001000
Dimensions (mm) Folded545 x 850 x 85780 x 670 x 75
Dimensions (mm) Open1100 x 850 x 40780 x 1350 x 35
Weight (kg)15.515.4
On an average day, you can expect approximately the following amperage into your battery:
Average daily sun hours5.5hrs5.5hrs
Average daily current to batteryApprox 35 + amp hoursApprox 50 + amp hours
Anticipated run time for a typical 50 Litre portable camp fridge (assuming 50% depth of discharge to your 100 amp hour battery)Up to 3 days3 days +
Test Conditions1000W/m² , AM1.5 , 25°C
