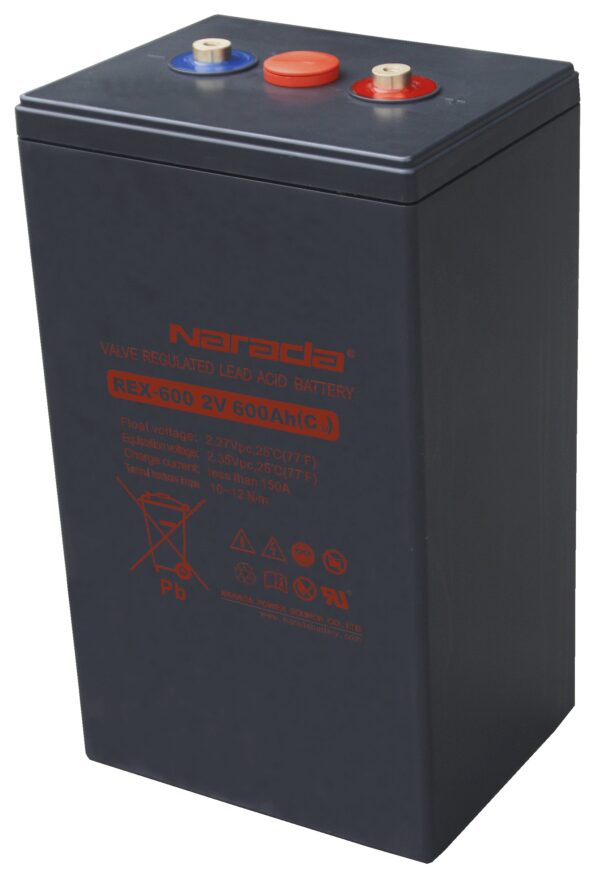

Narada REX 600 Battery

$1.00

Type: REX-600
Voltage: 2V
Nominal Capacity: 600Ah(C10) – 600Ah(10 hours rate:)
Length: 231mm
Width: 180mm
Height: 396mm
Height with terminal: 408mm
Weight: 47Kg

SKU: Narada REX 600 Battery Categories: , ,

Narada’s REX battery is designed for Renewable Energy Sources such as Solar and Wind Power. REX protects our environment using Green Technology and benefits the World’s
Urban and Rural Population by Generating Power Economically from a Clean Source of Energy. REX is a product developed by Narada’s R&D with an ” eXtra” in Performance and Life Span.

Features & Benefits

  • Long life design for both cyclic and float applications
  • Superb security and reliability
  • Robust design inside and out
  • Excellent deep discharge recovery fast recharge performance
  • Extra long back-up times
  • More cost effective than nearest equivalent

Technical specifications

Electrical data

  • Nominal voltage 2 V
  • Number of cells 1
  • Rated capacity(25℃) 600 Ah – 60A for 10h to 1.80V/cell
  • 720 Ah – 6A for 120h to 1.85V/cell
  • Internal resistance 0.23 mΩ (acc. to IEC 60896-21)
  • Short circuit current 8614 A (acc. to IEC60896-21 )
  • Self discharge(25℃) less than 2% per month
  • Design life at 20℃ 20 years

Mechanical data

  • Weight ready for use 48 kg (105.8 lbs)
  • Length 231 mm (9.09 in)
  • Width 180 mm (7.09 in)
  • Height of monobloc 396 mm (15.59 in)
  • Total height 408 mm (16.06 in)
  • Terminal M8 female
  • Terminal hardware torque 10 – 12 Nm

Important Information

Product Guide: REX-600
