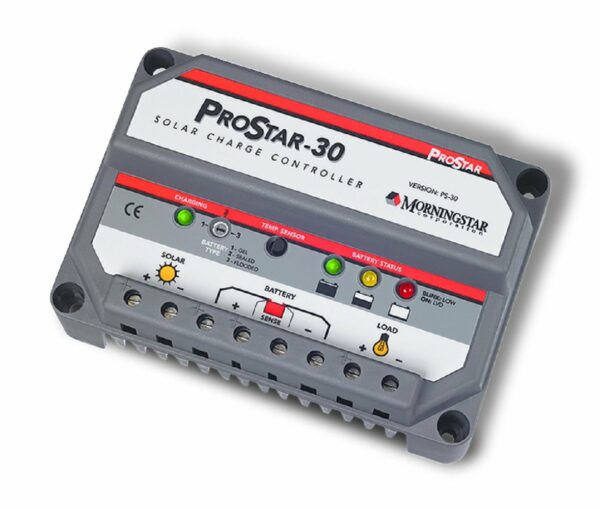

PROSTAR ™ CONTROLLER 15 or 30 amps / 12 or 24 volts

The ProStar is a mid-range solar controller for both professional and consumer applications.

SKU: PS -15, PS -30 or PS -15M-48V Category:
  • LONGER BATTERY LIFE – Constant voltage PWM series regulation uses 4-stage charging Temperature compensation and choice of 3 battery types. Voltage sense terminals for more accurate battery reading.
  • MORE INFORMATION – Includes three battery level LED indicators. Optional meter includes a safety disconnect and displays amps, volts, temperature and self-test.
  • EXTENSIVE ELECTRONIC PROTECTIONS – Avoids use of mechanical fuses. Electronic protections for short-circuit, overload, reverse polarity, high voltage and temperature, and reverse current
    at night.

Ambient Operating Temperature: –40°C to +60°
Terminal Size 16 mm²
Weight 0.34 kg
Dimensions 15.3 x 10.5 x 5.5 cm
Warranty 5 years
