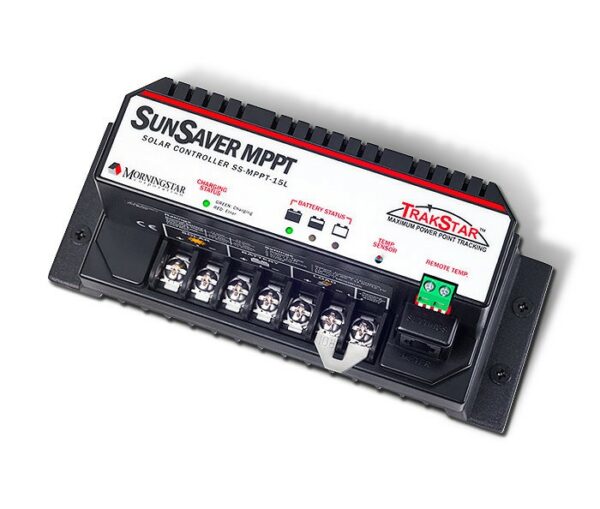

BEST CHOICE FOR 12V CHARGING FROM GRID BASED SOLAR MODULES
- Use of high Voltage Modules – In addition to 12 volt crystalline modules, enables the use of high voltage and thin film modules for off-grid battery charging.
- Power Boost – Maximum power point tracking provides an increase of amps from the solar array into the battery.
- Converts 24V to 12V – Provides a means to use a 24V solar array to charge a 12V battery, reducing power losses in systems with a long cable run between the solar array and the battery.
- Automatic Lighting Control – Includes up to four programmable timer sequences for PV lighting applications.
Ambient Operating Temperature: –40°C to +60°C
Terminal 16 mm²
Weight 0.60 kg
Dimensions 16.8 x 5.5 x 7.0 cm
Warranty 5 years
