Tilt Frame PV Mounting System
$1.00

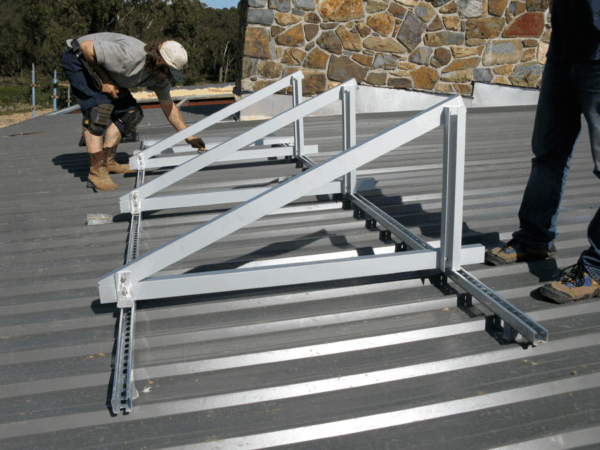

Choose Solar tilt frames are quick to install and designed to meet Australian Standard AS1170 wind loading specifications. Our standard tilt frame is 30º but custom sizes are available on request.
You can select from our pre-configured tilt frame kits further down the page for rows of 3 to 6 panels.
Tilt Frame Requirements
These tilt frame specifications are engineer certified to comply with AS1170 wind loading standards.
| Panel Watts | Design Wind Speed | No Panels | No Frames |
| 170/175W | 41metres/sec | 3 Panels | 2 Frames |
| 170/175W | 41metres/sec | 4 Panels | 3 Frames |
| 170/175W | 41metres/sec | 5 Panels | 4 Frames |
| 170/175W | 41metres/sec | 6 Panels | 5 Frames |
| 200W | 41metres/sec | 3 Panels | 2 Frames |
| 200W | 41metres/sec | 4 Panels | 3 Frames |
| 200W | 41metres/sec | 5 Panels | 4 Frames |
| 200W | 41metres/sec | 6 Panels | 5 Frames |
| 260W | 41metres/sec | 3 Panels | 3 Frames |
| 260W | 41metres/sec | 4 Panels | 3 Frames |
| 260W | 41metres/sec | 5 Panels | 4 Frames |
| 260W | 41metres/sec | 6 Panels | 5 Frames |
NOTE: Mounting rail attachment to Tilt Frames MUST be within 150mm of the “sloping channel member” end attachments.
Actual roof attachment is the responsibility of the installer and dependant on the roof material, condition and construction.
Choose Solar Mounting Rails are designed to meet AS-1170 wind loading requirements.
Click here to see further installation specificationsor click here to view example videos of a tile roof installation using a mounting rail system.
